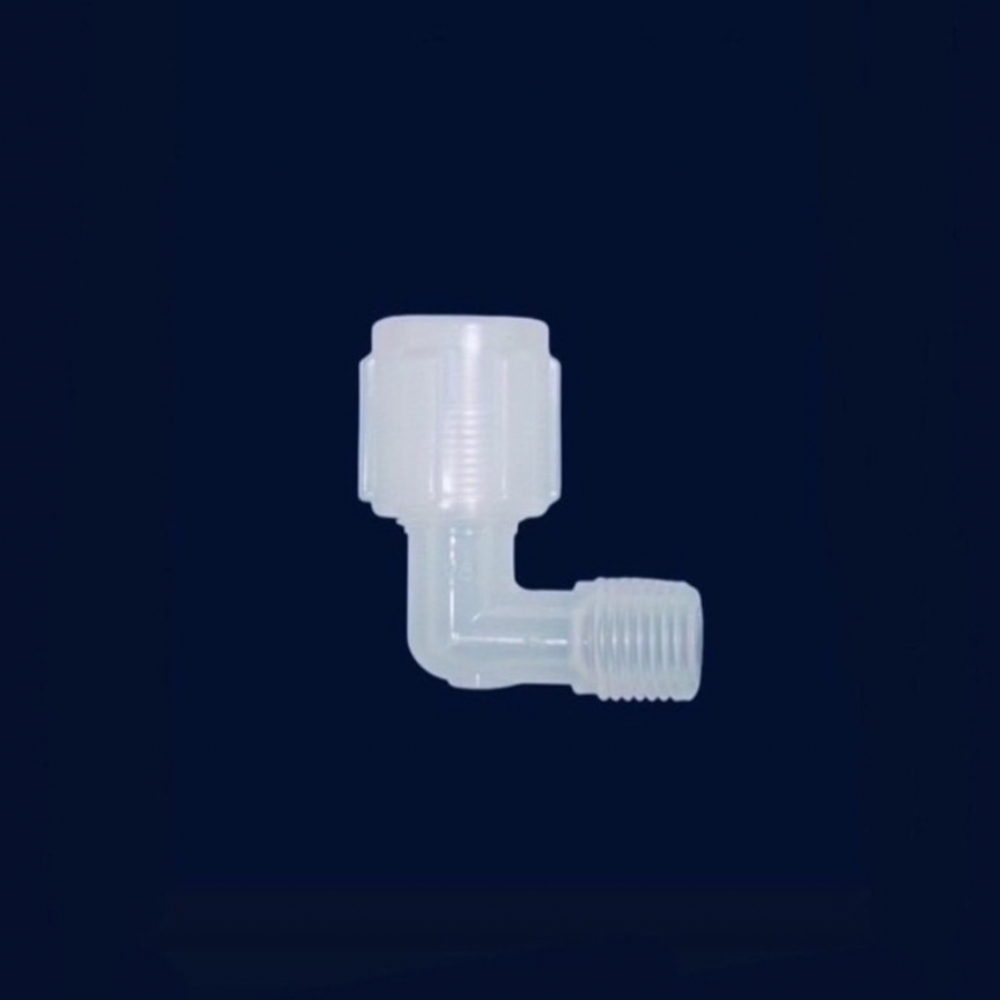

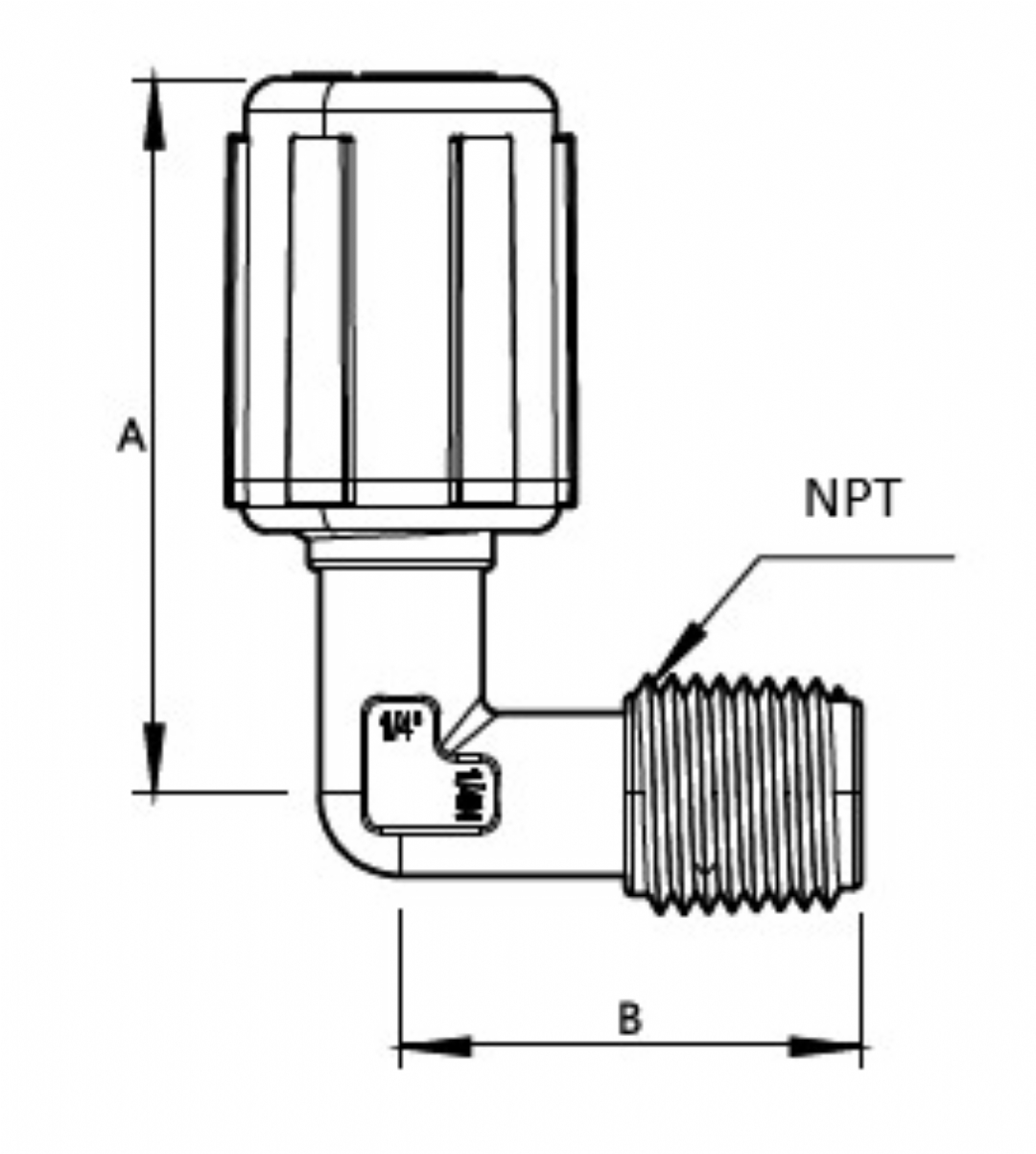

| PFA 外 牙 彎 頭 |

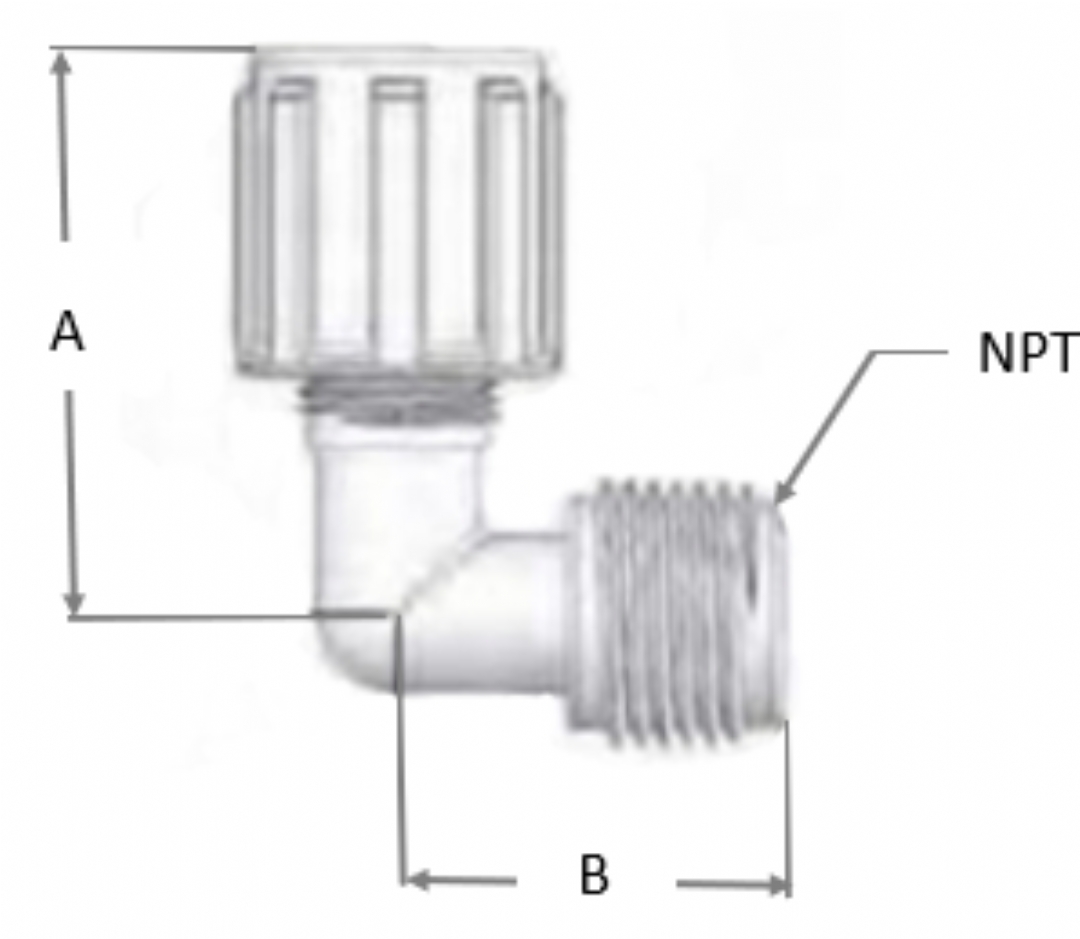

| 公 制 規 格 表 單位(mm) |
| Tube O.D. | NPT Size | Orifice | A | B |
| 1/4 | 1/8 | 3.81 | 42.16 | 26.92 |
| 1/4 | 1/4 | 3.81 | 42.16 | 26.92 |
| 1/4 | 3/8 | 3.81 | 42.16 | 26.92 |
| 1/4 | 1/2 | 3.81 | 42.16 | 29.72 |
| 3/8 | 1/8 | 4.57 | 42.16 | 26.92 |
| 3/8 | 1/4 | 6.35 | 44.70 | 26.92 |
| 3/8 | 3/8 | 6.35 | 44.70 | 26.92 |
| 3/8 | 1/2 | 6.35 | 44.70 | 29.97 |
| 1/2 | 1/4 | 6.35 | 44.70 | 26.92 |
| 1/2 | 3/8 | 9.65 | 47.24 | 26.92 |
| 1/2 | 1/2 | 9.65 | 47.24 | 29.97 |
| 1/2 | 3/4 | 12.45 | 47.24 | 34.54 |
| 3/4 | 3/8 | 9.14 | 56.13 | 31.24 |
| 3/4 | 1/2 | 13.46 | 56.13 | 34.54 |
| 3/4 | 3/4 | 16 | 56.13 | 34.80 |
| 3/4 | 1 | 16 | 56.13 | 45.72 |
| 1 | 1/2 | 12.95 | 68.58 | 34.80 |
| 1 | 3/4 | 16.76 | 68.58 | 41.66 |
| 1 | 1 | 22.1 | 68.58 | 45.72 |
| PFA 外 牙 直 接 頭 |
| 公 制 規 格 表 單位(mm) |
| Tube O.D. | NPT Size | Orifice | A | B |
| 1/4 | 1/8 | 3.81 | 42.16 | 26.92 |
| 1/4 | 1/4 | 3.81 | 42.16 | 26.92 |
| 1/4 | 3/8 | 3.81 | 42.16 | 26.92 |
| 1/4 | 1/2 | 3.81 | 42.16 | 29.72 |
| 3/8 | 1/8 | 4.57 | 42.16 | 26.92 |
| 3/8 | 1/4 | 6.35 | 44.70 | 26.92 |
| 3/8 | 3/8 | 6.35 | 44.70 | 26.92 |
| 3/8 | 1/2 | 6.35 | 44.70 | 29.97 |
| 1/2 | 1/4 | 6.35 | 44.70 | 26.92 |
| 1/2 | 3/8 | 9.65 | 47.24 | 26.92 |
| 1/2 | 1/2 | 9.65 | 47.24 | 29.97 |
| 1/2 | 3/4 | 12.45 | 47.24 | 34.54 |
| 3/4 | 3/8 | 9.14 | 56.13 | 31.24 |
| 3/4 | 1/2 | 13.46 | 56.13 | 34.54 |
| 3/4 | 3/4 | 16 | 56.13 | 34.80 |
| 3/4 | 1 | 16 | 56.13 | 45.72 |
| 1 | 1/2 | 12.95 | 68.58 | 34.80 |
| 1 | 3/4 | 16.76 | 68.58 | 41.66 |
| 1 | 1 | 22.1 | 68.58 | 45.72 |
