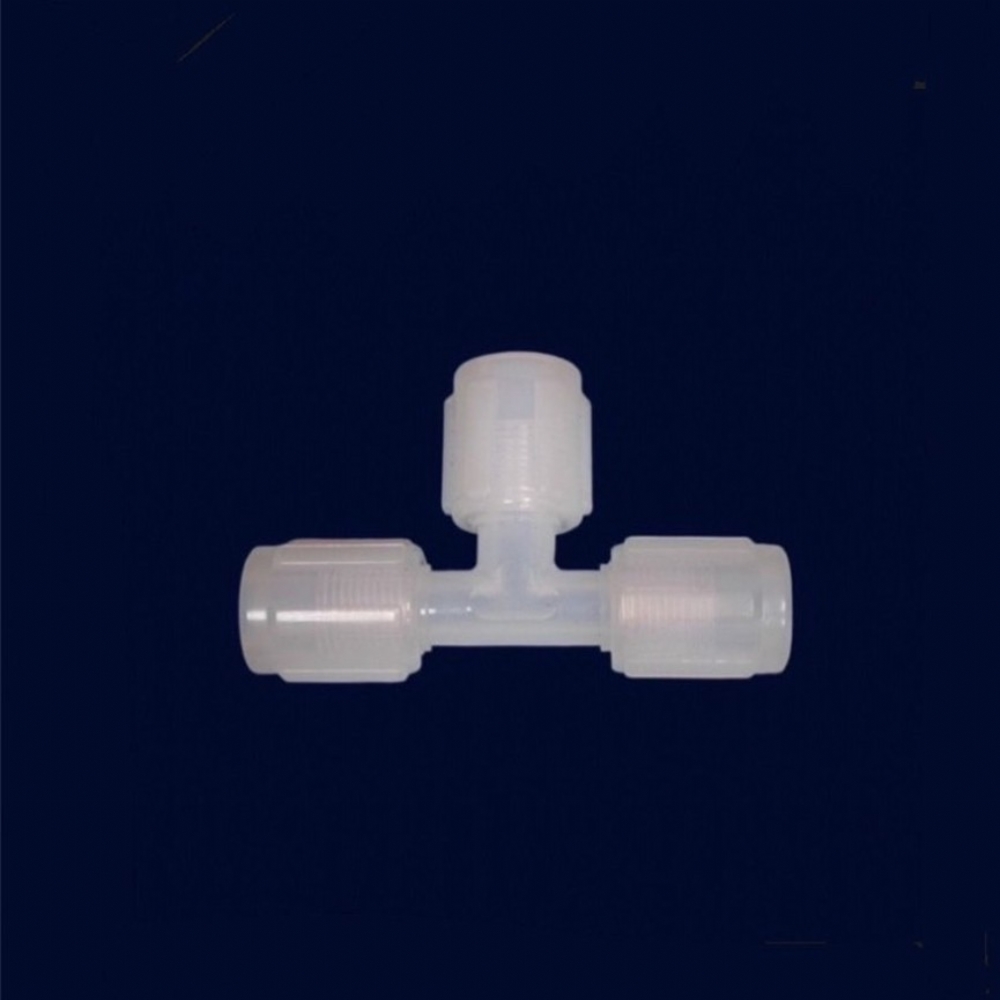

| PFA 三 通 |
| 公 制 規 格 表 單位(mm) |

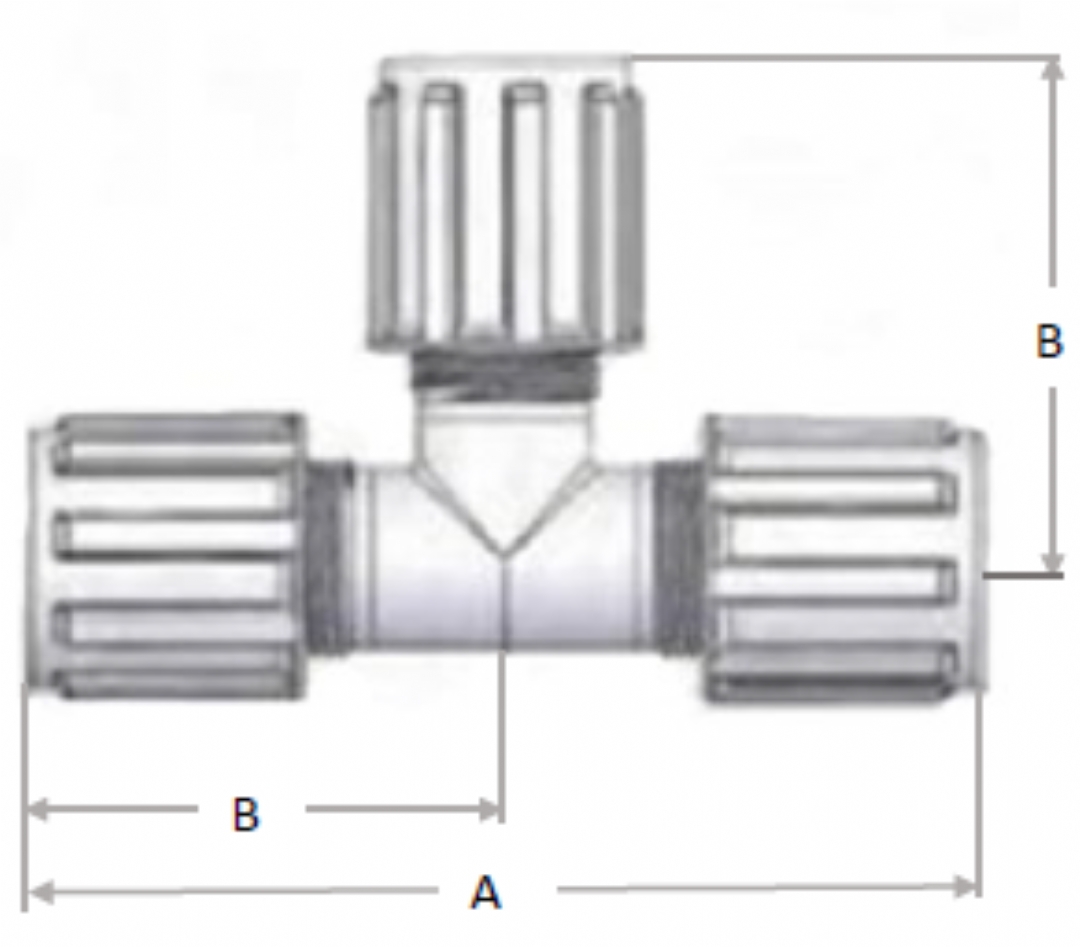

| Tube O.D. | 孔徑 | A | B | C |
| 1/4" | 3.3 | 8.1 | 40.9 | 40.9 |
| 3/8" | 6.4 | 87.9 | 43.9 | 43.9 |
| 1/2" | 9.7 | 92.7 | 46.5 | 46.5 |
| 3/4" | 16 | 110.7 | 55.4 | 55.4 |
| 1" | 22.4 | 137.2 | 68.6 | 68.6 |
| 1 1/4" | 27.95 | 176.66 | 88.33 | 88.32 |
| 1 1/2" | 33.7 | 215.0 | 107.5 | 107.5 |
|
|
| PFA 三 通 |
| 公 制 規 格 表 單位(mm) |

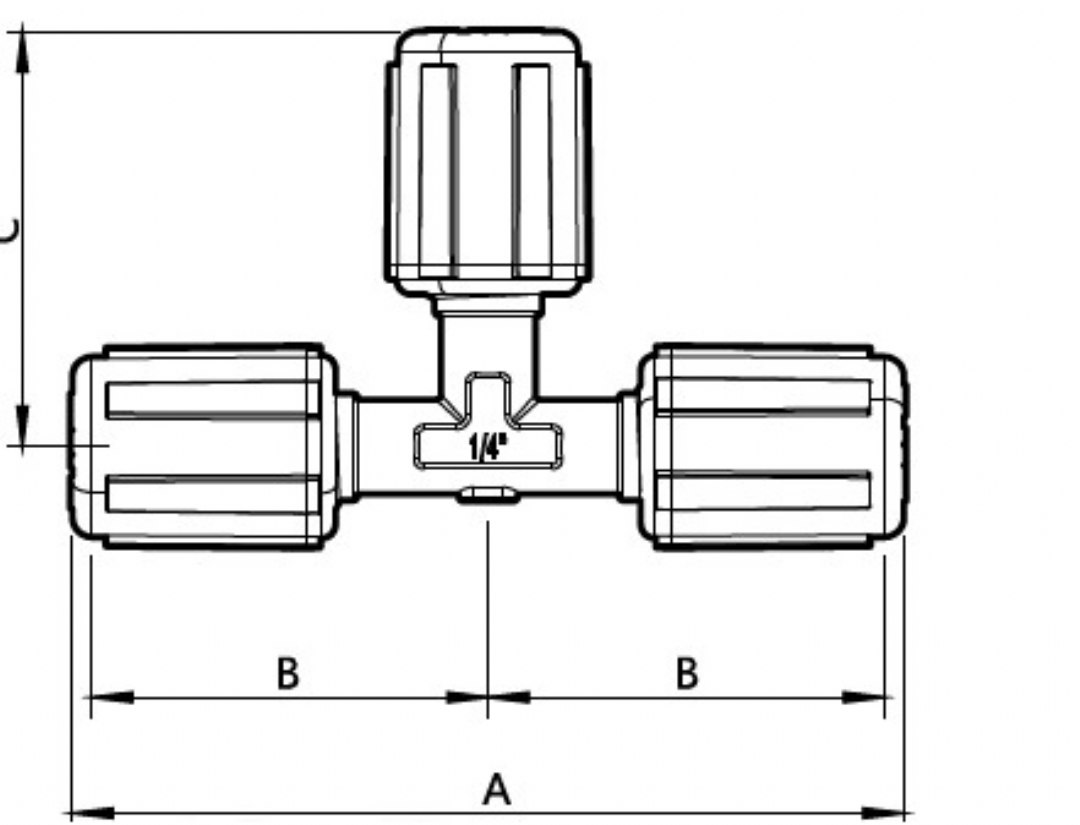

| Tube O.D. | 孔徑 | A | B | C |
| 1/4" | 3.3 | 8.1 | 40.9 | 40.9 |
| 3/8" | 6.4 | 87.9 | 43.9 | 43.9 |
| 1/2" | 9.7 | 92.7 | 46.5 | 46.5 |
| 3/4" | 16 | 110.7 | 55.4 | 55.4 |
| 1" | 22.4 | 137.2 | 68.6 | 68.6 |
| 1 1/4" | 27.95 | 176.66 | 88.33 | 88.32 |
| 1 1/2" | 33.7 | 215 | 107.5 | 107.5 |
