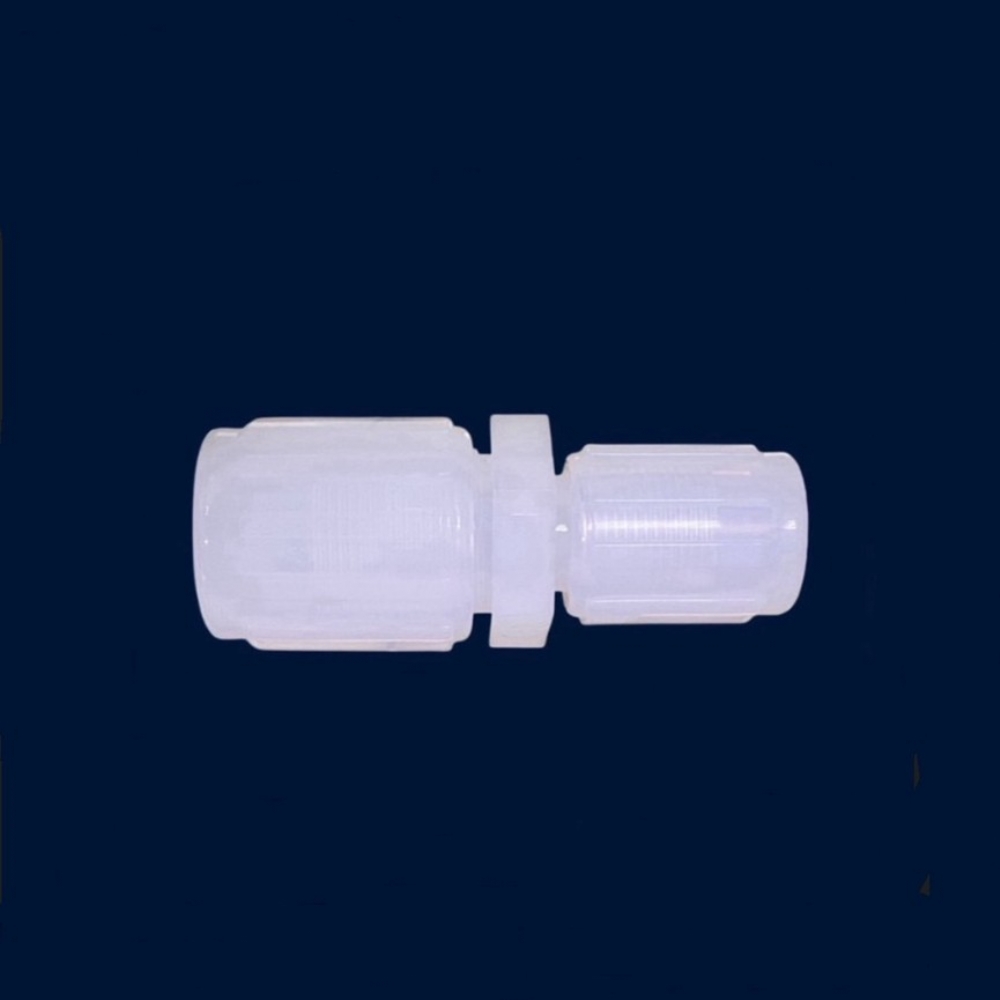

| PFA 變徑直接頭 |

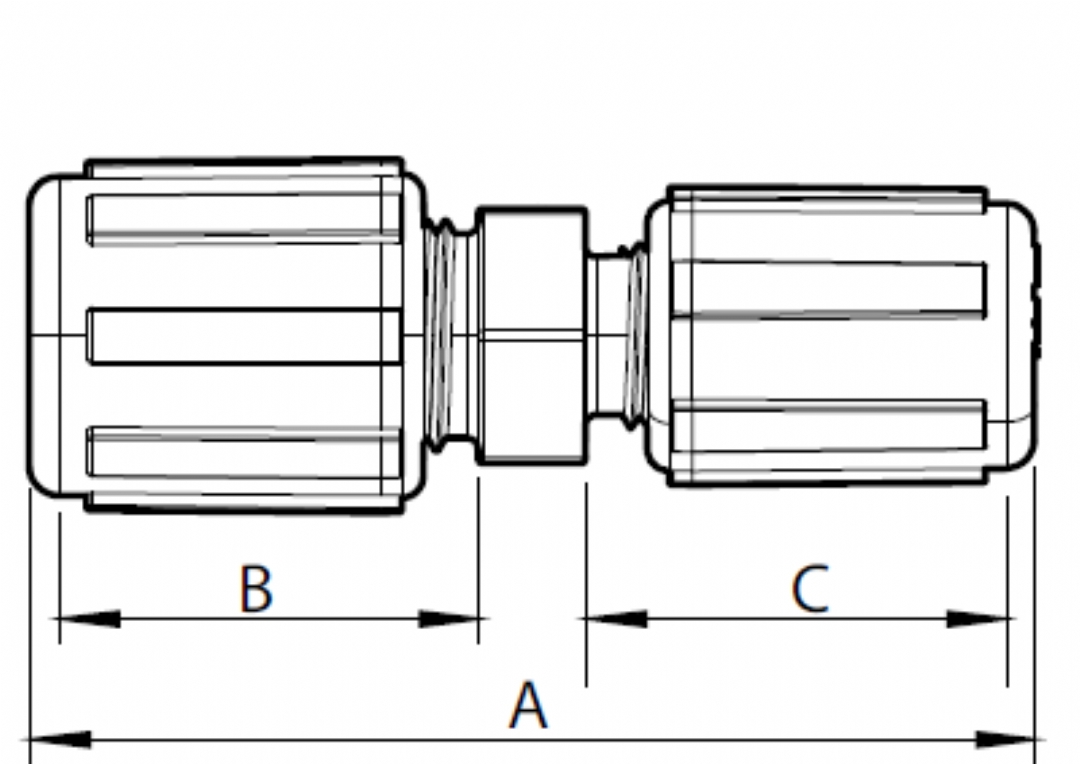

| 公 制 規 格 表 單位(mm) |
| Tube O.D. | 孔徑 | A | B | C |
| 3/8"x1/4" | 3.3 | 65.3 | 30.7 | 27.7 |
| 1/2"x1/4" | 3.3 | 67.8 | 33.3 | 27.7 |
| 1/2"x3/8" | 6.4 | 70.9 | 33.3 | 30.7 |
| 3/4"x1/4" | 3.3 | 72.4 | 37.6 | 27.7 |
| 3/4"x3/8" | 6.4 | 75.9 | 37.6 | 30.7 |
| 3/4"x1/2" | 9.7 | 78 | 37.6 | 33.3 |
| 1"x1/2" | 9.7 | 84.6 | 43.9 | 33.5 |
| 1"x3/4" | 16 | 88.6 | 43.7 | 37.6 |
| 1 1/4"x1/2" | 9.7 | 85.1 | 44.5 | 33.3 |
| 1 1/4"x3/4" | 16 | 89.4 | 44.5 | 37.6 |
| 1 1/4"x1" | 22.4 | 90.1 | 44.5 | 38.3 |
| 1 1/2"x3/4" | 16 | 89.4 | 44.5 | 37.6 |
| 1 1/2"x1" | 22.4 | 101.2 | 55 | 38.7 |
| 1 1/2"x1 1/4" | 27.95 | 109.4 | 55 | 46.9 |
|
|
| PFA 外 牙 直 接 頭 |
| 公 制 規 格 表 單位(mm) |
| Tube O.D. | 孔徑 | A | B | C |
| 3/8"x1/4" | 3.3 | 65.3 | 30.7 | 27.7 |
| 1/2"x1/4" | 3.3 | 67.8 | 33.3 | 27.7 |
| 1/2"x3/8" | 6.4 | 70.9 | 33.3 | 30.7 |
| 3/4"x1/4" | 3.3 | 72.4 | 37.6 | 27.7 |
| 3/4"x3/8" | 6.4 | 75.9 | 37.6 | 30.7 |
| 3/4"x1/2" | 9.7 | 78 | 37.6 | 33.3 |
| 1"x1/2" | 9.7 | 84.6 | 43.9 | 33.5 |
| 1"x3/4" | 16 | 88.6 | 43.7 | 37.6 |
| 1 1/4"x1/2" | 9.7 | 85.1 | 44.5 | 33.3 |
| 1 1/4"x3/4" | 16 | 89.4 | 44.5 | 37.6 |
| 1 1/4"x1" | 22.4 | 90.1 | 44.5 | 38.3 |
| 1 1/2"x3/4" | 16 | 89.4 | 44.5 | 37.6 |
| 1 1/2"x1" | 22.4 | 101.2 | 55 | 38.7 |
| 1 1/2"x1 1/4" | 27.95 | 109.4 | 55 | 46.9 |
