PFA 外牙直接頭

材質:PFA

如有需要了解各個尺寸請來電洽詢

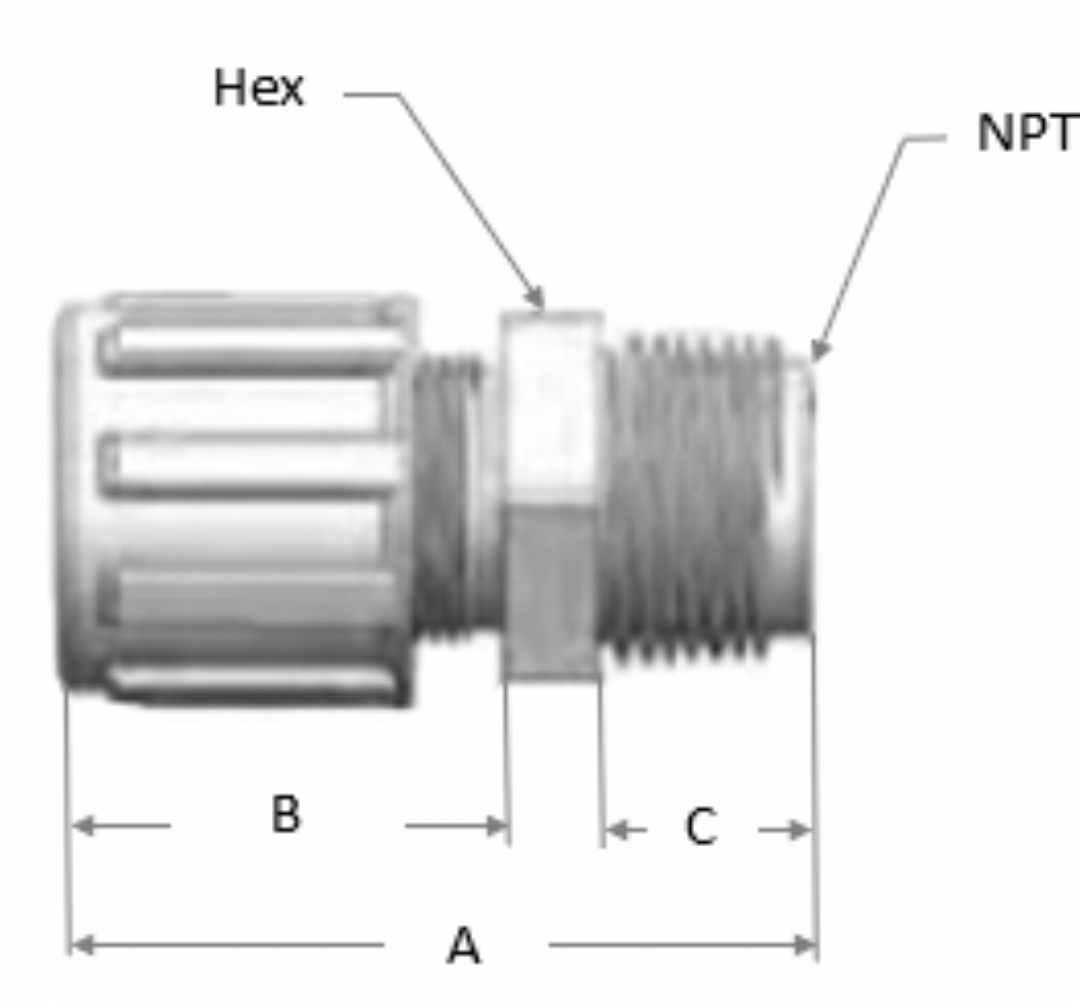

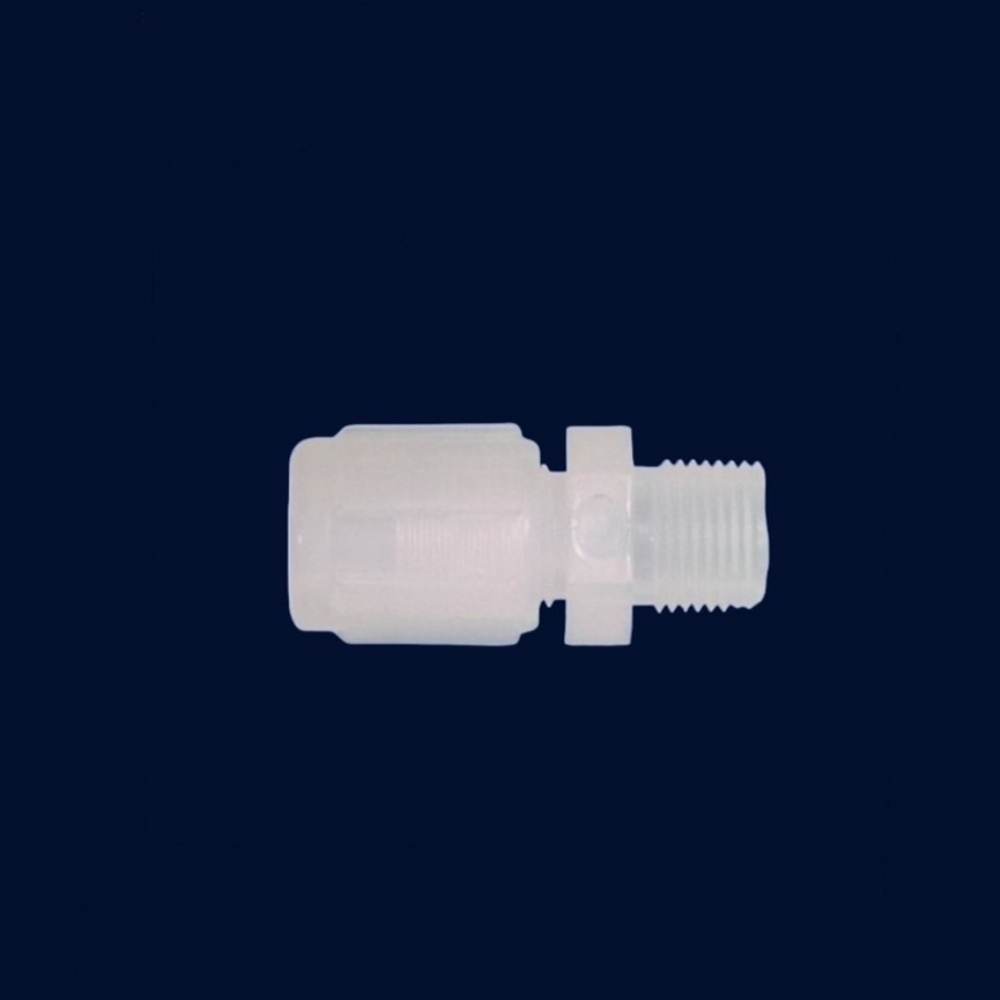

PFA 外牙直接頭

公制規格表 單位(mm)

Tube O.D.	NPT Size	Orifice	A	B	C	Hex
1/4	1/4	3.81	50.80	29.46	13.97	15.88
1/4	3/8	3.81	50.80	29.46	13.97	17.46
1/4	1/2	3.81	53.85	29.46	16.76	20.64
3/8	1/8	4.57	53.09	32.26	13.97	20.64
3/8	1/4	6.35	53.59	32.26	13.97	20.64
3/8	3/8	6.35	53.59	32.26	13.97	20.64
3/8	1/2	6.35	56.13	32.26	16.76	23.81
3/8	3/4	6.35	56.39	32.26	16.76	30.16
3/8	1	6.35	60.71	32.26	21.59	36.51
1/2	1/4	9.65	55.88	34.54	13.97	23.81
1/2	3/8	9.65	55.88	34.54	13.97	23.81
1/2	1/2	9.65	58.93	34.54	16.76	23.81
1/2	3/4	9.65	58.93	34.54	16.76	30.16
1/2	1	9.65	63.75	34.54	21.84	36.51
3/4	3/8	9.65	60.20	38.61	14.22	23.81
3/4	1/2	12.95	62.99	38.61	17.02	30.16
3/4	3/4	16.00	62.99	38.61	17.02	30.16
3/4	1	16.00	67.56	38.61	21.59	36.51
1	1/2	12.95	68.33	43.94	17.02	36.51
1	3/4	16.76	68.33	43.94	17.02	36.51
1	1	22.35	73.15	43.94	21.84	36.51

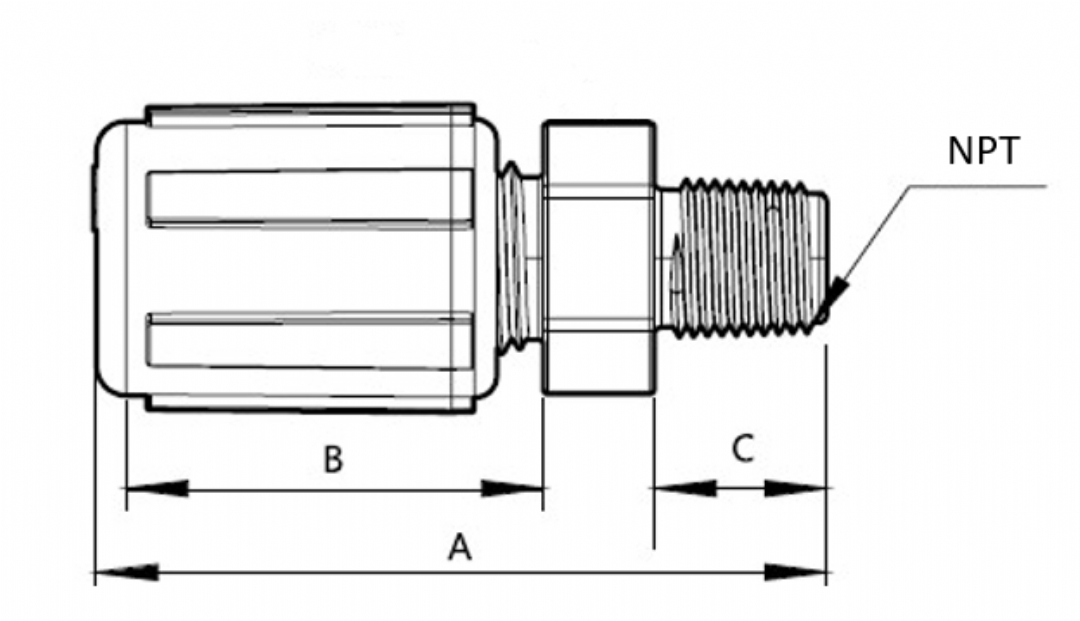

PFA 外牙直接頭

公制規格表單位(mm)

Tube O.D.	NPT Size	Orifice	A	B	C	Hex
1/4	1/4	3.81	50.80	29.46	13.97	15.88
1/4	3/8	3.81	50.80	29.46	13.97	17.46
1/4	1/2	3.81	53.85	29.46	16.76	20.64
3/8	1/8	4.57	53.09	32.26	13.97	20.64
3/8	1/4	6.35	53.59	32.26	13.97	20.64
3/8	3/8	6.35	53.59	32.26	13.97	20.64
3/8	1/2	6.35	56.13	32.26	16.76	23.81
3/8	3/4	6.35	56.39	32.26	16.76	30.16
3/8	1	6.35	60.71	32.26	21.59	36.51
1/2	1/4	9.65	55.88	34.54	13.97	23.81
1/2	3/8	9.65	55.88	34.54	13.97	23.81
1/2	1/2	9.65	58.93	34.54	16.76	23.81
1/2	3/4	9.65	58.93	34.54	16.76	30.16
1/2	1	9.65	63.75	34.54	21.84	36.51
3/4	3/8	9.65	60.20	38.61	14.22	23.81
3/4	1/2	12.95	62.99	38.61	17.02	30.16
3/4	3/4	16.00	62.99	38.61	17.02	30.16
3/4	1	16.00	67.56	38.61	21.59	36.51
1	1/2	12.95	68.33	43.94	17.02	36.51
1	3/4	16.76	68.33	43.94	17.02	36.51
1	1	22.35	73.15	43.94	21.84	36.51
